#SQLDevModeler Tip: From Domain to Database… A Comment Conundrum

Great tip on creating a custom transformation script in SQL Developer Data Modeler (SDDM) from the awesome David Schleis:

Recently on the Data Modeler Forum, I came across this question:

Is it possible to mirror domain comments, from Domain Administration into attribute “Comments in RDBMS”?  Would like to mirror these to the ddl so they can be then available in column comments in the database.

I knew that one of the example transformation scripts provided with Data Modeler copies the column “Comments” property to “Comments in RDBMS”, so I thought I would point this out to the questioner, and that would be that.  But….

See the rest of the story… From Domain to Database… A Comment Conundrum

Model on!

Kent

The Data Warrior

Advertisements

Better Data Modeling: Showing Super & Sub Types in #SQLDevModeler (SDDM)

So this started with a not so innocent tweet from Jeff Smith:

//platform.twitter.com/widgets.js

Well, I sort of answered at least part of the question (eventually),  but along the way the topic of using super types and sub types came up.

Note: If you don’t know what a sub type is, you probably do not do conceptual or logical modeling, so you can stop reading now. Or google it. 🙂

So, in Oracle SQL Developer Data Modeler (SDDM for short, or #SQLDevModeler) you can specify sub type entity relationships in the Logical Model (not relational or physical).

Unless I missed an enhancement (??), you have to do this by:

  1. Create the parent or super type entity
  2. Create the potential sub type entity
  3. Set the Super Type Entity property on the candidate Sub Type Entity to associate it with the parent.
Set Super Type

Set Super Type

Note in the screen that Super Type is set to Employees.

(It sure would be nice if we could just drag and drop to do this, or better just create a new sub type entity “inside” an existing entity)

Once you have set the property, then it will appear in the diagram in one of several ways, depending on the diagram notation you pick. The default is Barker Notation with Box-in-Box Presentation turned on. That looks like this:

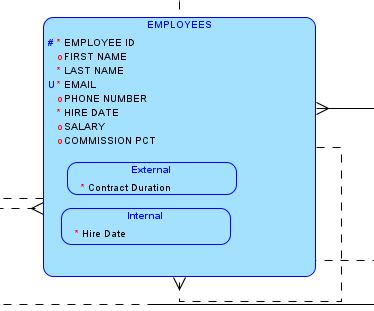

Displaying Subtypes in Barker Notation with Box-in-Box

Displaying Sub Types in Barker Notation with Box-in-Box

If you turn Box-in-Box off (right mouse on white space in the diagram then go to Notation), you can drag the sub types outside the super type display and a red line will be displayed to connect them together.

If you switch to Bachman Notation with Box-in-Box off, it looks like this:

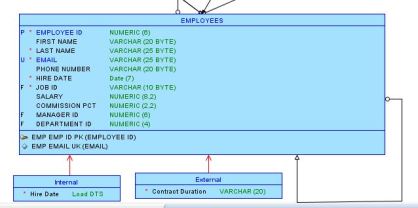

Displaying Subtypes in Bachman Notation

Displaying Sub Types in Bachman Notation

Notice the little red lines with arrows pointing into the Employees entity? That is the sub type relationship.

So depending on your personal experience and style, you have a few options to choose from when modeling these type of relationships.

How this converts to a database table design is a whole other (and longer) topic. If you really need to know now, go buy Heli’s SQL Dev Modeler Book and read the section on Inheritance.

Or you could sign up for my online Intro to SDDM (use coupon code GRAZIANO10S for 20% off).

Better Still – do BOTH!

Happy Modeling

Kent

The Data Warrior

P.S. I will be speaking at ECO15 in Raleigh, NC next week. If you are attending be sure to say hi.

Better Data Modeling: The Book

Trying to be as productive as possible during my infrequent down time, I just published another Kindle book with some of my best tips for Oracle Data Modeler. it is called Better Data Modeling: Tips for Enhancing Your Use of Oracle SQL Developer Data Modeler.

If you are one of the 3.5 million users (or so) who have downloaded this tool, and you want to know my little secrets for getting the most out of SQL Developer Data Modeler (#SQLDevModeler), this book if for you.

If you were an Oracle Designer user and are looking for a replacement data modeling tool, or you are using one of the other mainstream, expensive modeling tools and want a more cost effective alternative, then you owe it to yourself to look at Oracle SQL Developer Data Modeler (SDDM). Oracle Data Modeler has been around for over five years now and is up to version 4.1. It really is an industrial strength data modeling tool that can be used for any data modeling task you need to tackle.

SQL Developer Data Modeler (SDDM) is a fully functional tool provided for FREE by Oracle. It has many features built in that can be leveraged to capture the design of an existing (probably undocumented) database or you can use it to design a new database, even a data warehouse from scratch. There are a load of great features. This book will show you my favorite features along with detailed step by step instructions (with screen shots) on how to use them.

Tips include:

  • How to easily color code your diagrams
  • How to make hundreds of views really fast
  • How to find missing foreign keys
  • How to find missing unique keys
  • How to connect to a SQL Server database (if you must…)

As a bonus, there are two appendices with my run down on common data modeling mistakes and my famous rant on why you need foreign keys in your data warehouse.

So if you don’t use Oracle Data Modeler yet, read my book to see why you should.

If you do use it, I hope this little book will make you even more productive than you already are!

Model on!

Kent

The Data Warrior

P.S. After you read the book, please leave a review on Amazon to help other folks decide if the book is for them.

End Your Data Modeling Pain

Tired of hand drawn data models, or models drawn in Visio or even PowerPoint?

Still limping along on an old Oracle Designer repository?

Can’t afford the license for your current modeling tool anymore?

Or maybe your shop has no documented data model diagrams at all (horrors!).

Well, if you were an Oracle Designer user and are looking for a replacement data modeling tool, or you are using one of the other mainstream, expensive modeling tools and want a more cost effective alternative, then you owe it to yourself (and your organization) to look at Oracle SQL Developer Data Modeler (SDDM). Data Modeler has been around for over five years now and is up to version 4.1. It really is an industrial strength data modeling tool that can be used for any data modeling task you need to tackle.

As I have mentioned before (many times) in this blog, SQL Developer Data Modeler (SDDM) is a fully functional modeling tool provided for FREE by Oracle. It has many features built in that can be leveraged to capture the design of an existing (probably undocumented) database and re-engineer it or you can use it to design a new database, even a data warehouse from scratch. There are features to apply standards, and then generate DDL to implement your newly standardized design. You can even use one logical model to develop multiple physical models that can be deployed to different RDBMS (like Oracle, SQL Server, and DB2). You even have options on the type of notation used in the diagrams (i.e., Barker, IE, etc.).

Unfortunately there are no comprehensive, end-to-end classes that can teach you how to really get started with SDDM and can point you to some of the awesome features and show you how they work.

Not until NOW!

Announcing my new online class: Introduction to Oracle SQL Developer Data Modeler.

This course will start from a totally blank page and walk you through all the major features and options of the tool to show you how to design build and deploy a database. I provide lots of examples and tips on how to do all this so that you can quickly be productive (while you watch!).

In this class, I will introduce you to the tool and show you how to use some of the cool features I use almost daily. I will provide step-by-step instructions on how to use these features. The class includes both lectures with screen shots and hands on demos of the tool (recorded live by me). Hint: some of my best tips are in the demos.

In this course you will see:

  • How to create new objects (entities, attributes, relationships) from a blank page
  • How to reverse engineer and document existing databases
  • How to reverse engineer logical models from physical to get a clean ERD
  • How to reconcile an existing data model to the database or the database to a model
  • How to generate a script to change an existing database

Tips, tricks and features I demonstrate include:

  • Modifying the delivered reporting templates
  • How (and when) to use the abbreviations utility
  • How to use and apply domains
  • How to create and applying object naming templates
  • How to add audit columns to every table in a model
  • How to add custom design rules for model quality checks
  • How to use the built in quality checks
  • How to use the newest find and extract feature to enable updating table and column comments by end users
  • How to generate a simple data dictionary

As an added bonus, in addition to step by step slides, and the demos, I have included a zip file with example output, templates, and DDL scripts that I created during the demos. You will be able to download these to your machine to try the exercises yourself.

If you have questions along the way, our modern learning management system (LMS) lets you enter your questions in the course comments whenever you want. I will get an immediate email notification so I can promptly answer your questions.

Unlike typical user group presentations, where I can only scratch the surface or show a few tricks, this course contains over four and a half hours of content broken up into bite-sized modules so you can easily digest the detailed information. If it does not make sense, you can simply play the same segment over again and even follow along on using your own install of SDDM.

By the end of the course you will be able to effectively use Oracle SQL Developer Data Modeler for all your data modeling tasks.

So head over to Learn Data Vault and check out the preview video of the class, then sign up and learn. Use my special offer code of GRAZIANO10S to get 10% off.

See you online!

Kent

The Data Warrior

P.S. The current price of the course is the initial sale price. I am not sure when the price will go up but Dan and Sanjay tell me that I set the price too low and they will have to raise it in the near future. So, I would sign up now, before that price goes up.

Early Christmas Present: Oracle SQL Developer Data Modeler 4.1 Beta is here! (Still FREE)

Just saw this tweet from Oracle Product Manager Ashly Chen:

Get thee to the site and download away!

Did I say, it is FREE?

(Do remember it is BETA as use it accordingly)

Cheers!
Kent
The Oracle Data Warrior
